Nano Cellulose in Cementitious Systems: A New Era of Rheology Control

I have investigated several rheology modifiers in cement systems over the years of working with different construction chemicals, particularly in tile adhesives, mortars, and admixtures. Although I haven’t yet used Nano Cellulose in Cement directly in my formulations, I have a solid foundation to assess and suggest nanocellulose for particular applications because of my extensive knowledge of guar gum, xanthan gum, HPMC, MHEC, HEC, and cementitious systems’ reactions to rheology control.

Based on my practical experience with cellulose ethers and gums, this article provides formulators with a realistic comparison with nanocellulose to help them understand where it might fit in and even surpass current solutions.

My Experience with HPMC, MHEC, HEC, and Gums Before Exploring Nano Cellulose in Cement

I made extensive use of HPMC and MHEC when creating tile adhesives in accordance with EN 12004 standards (C1, C2, T, E, S1, S2). I discovered that using these materials between 0.1% and 0.4% effectively controlled viscosity and water retention. But when the dosage was increased above 0.45%, an early surface film formed, which shortened the open time and decreased workability.

• Ideal dosage range: 0.1–0.4% for dry mix mortars
• Benefits: Excellent viscosity control, workability, and water retention
• Caution: Overuse can reduce performance during tile embedding.

Note:Although I haven’t used nanocellulose in formulations myself yet, I can offer sensible comparisons and suggestions because of my extensive practical experience with gums and cellulose ethers (HPMC, HEC, and MHEC).

Here’s a comparative view of how Nano Cellulose in Cement behaves relative to the modifiers I’ve used:

How Nano Cellulose Compares to What I’ve Used
Feature	My Experience with Cellulose Ethers	Reported Behavior of Nano Cellulose
Water Retention	Excellent (0.3–0.4% dose)	Good to Excellent (0.1–0.2% dose)
Open Time	Good, but dosage-sensitive	Good control with reduced dosage
Cohesion/Anti-sag	Depends on RDP and filler balance	Naturally high due to 3D fiber network
Dosage	0.3–0.5%	0.1–0.2%
Film Formation	Yes	No, but provides structure
Cost	Economical	Higher cost, but lower required dose
Compatibility	Well established	Needs good dispersion techniques

This comparison demonstrates that, even at lower dosages, nanocellulose may perform on par with or better than conventional cellulose in important areas like cohesion and anti-sag. When RDP dosage or cost is an issue, this could be especially beneficial.

In contrast, HEC performed exceptionally well in liquid products such as paints or admixtures, but in dry mix systems, it is not as effective at retaining water as HPMC or MHEC.

As for guar and xanthan gums, they only act as thickening agents—helpful in certain cases, but they don’t enhance open time or water retention meaningfully in cement-based systems.

Quick Chemistry Overview: Learning About Nanocellulose and Cellulose Derivatives
Modifier	Base Functional Groups	Function	Solubility	Main Uses
Methyl Cellulose (MC)	R–OCH₃	Methylation using methyl chloride	Water-soluble	Dry-mix mortars (thickening, water retention)
Hydroxyethyl Methyl Cellulose (MHEC)	R–OCH₂CH₂OH & R–OCH₃	Ethylene oxide + methyl chloride	Cold water-soluble	Paints, tile adhesives, repair mortars
Hydroxypropyl Methyl Cellulose (HPMC)	R–OCH₃ & R–OCH₂CHOHCH₃	Propylene oxide + methylation	Cold water-soluble	Self-leveling, plaster, tile adhesives
Carboxymethyl Cellulose (CMC)	R–OCH₂COOH / COONa	Monochloroacetic acid etherification	Water-soluble (anionic)	Paints, light mortars
Nano Cellulose (NC)	(C₆H₁₀O₅)ₙ, rich in –OH groups	Mechanically/chemically extracted fibers	Water-dispersible	Advanced mortars, self-levelers, anti-sag systems

Given this context, understanding the basic chemistry of these modifiers is helpful for recognizing how nanocellulose differs from them.

Why I Suggest Nano Cellulose in Cement—In Light of What I’ve Learned

Despite the fact that I haven’t used nanocellulose directly yet, I have thoroughly researched it, examined performance data, and contrasted its stated behavior with the systems I’ve worked with.

A three-dimensional network of fibers with a high surface area and exceptional water-holding capacity is formed by nanocellulose, particularly nanofibrillated cellulose (NFC). It seems to provide a number of distinct benefits in cementitious formulations, based on supplier data and the literature:

• Enhances cohesiveness and anti-sagging
• Improves flow without being overly viscous.
• Effective at low dosages (0.1–0.2%)
• Releases water gradually to encourage internal curing.
• Supports the vertical buildup of tile, plaster, or shotcrete adhesives.

These are precisely the performance characteristics I’ve been trying to attain with gum combinations, HPMC, and MHEC. This alignment gives me the confidence to suggest nanocellulose as a progressive option for contemporary cement formulations.

Based on the performance profiles and my formulation history across tile adhesives, self-leveling, and repair mortars, here’s how nano cellulose might help if introduced thoughtfully:

Suggested Use Cases for Nano Cellulose in Cement(Based on My Formulation Experience)
Application	Current Practice	How Nano Cellulose May Help
C2TE Tile Adhesives	HPMC + RDP	HPMC + 0.1% Nano Cellulose for reduced sag and better cohesion
Self-Leveling Mortars	MHEC + defoamer + PCE	Add 0.1–0.2% Nano Cellulose to improve anti-bleed & flow
Shotcrete/Vertical Mortars	MHEC + polymer blend	Nano Cellulose to aid build-up and reduce rebound
Repair Mortars	HPMC/MHEC + latex	Enhance internal curing + early strength

These are illustrative recommendations. Prior to commercial use, proper dispersion and compatibility testing are essential, but these improvements appear promising based on the structure of reported nanocellulose.

What I Would Expect from Nano Cellulose in My Systems

Given how cellulose ethers perform in tile adhesives, grouts, and self-leveling mortars, I expect nanocellulose to bring additional performance advantages, particularly in the following areas:

• Reducing polymer dosage while maintaining anti-sag
• Improving vertical build without excessive thickeners
• Enhancing self-leveling flow without segregation
• Increasing early strength in cement systems

These are goals I often try to reach with combinations of HPMC/MHEC + RDP + thickeners, and nanocellulose could simplify that system.

Challenges to Consider When Working with Nano Cellulose in Cement Formulations (From My Technical Perspective)

Nanocellulose has technical difficulties despite its potential:

• To prevent clumping, it requires a high shear dispersion.
• Surface modification may be necessary to address the problem of alkaline stability.
• The low dosage offsets the higher cost per kilogram.

As formulators, these are not new problems. Similar problems already arise when specialty polymers or high-performance additives are used.

My Useful Tips for Other Formulators Considering Nano Cellulose in Cement Systems

If you’re attempting to get better while using HPMC or MHEC:

• Vertical hold with anti-sag
• Reduce polymer load or flow in self-leveling systems.
• Then it’s worthwhile to investigate nanocellulose.

Although I haven’t used it yet, I think it can enhance and supplement conventional formulations given the behavior of my current systems and the benefits that nanocellulose provides

To sum up

There is more to this article than just theory. It is based on practical formulation experience with mortar systems, gums, and cellulose ethers. Even though I haven’t tested nanocellulose in my lab yet, I am confident in recommending it for more research because of how well its known performance characteristics match my practical needs.

• If you’re working on vertical mortars, self-levelers, or next-generation tile adhesives and want to try something different, nanocellulose might be the answer.

Please get in touch if you have already tried it or intend to do so so that we can exchange ideas and keep improving our cement systems for increased sustainability and performance.

Based on my most recent research and experience, I revised this article on August 2, 2025, to incorporate fresh perspectives and comparisons regarding nanocellulose in cement.

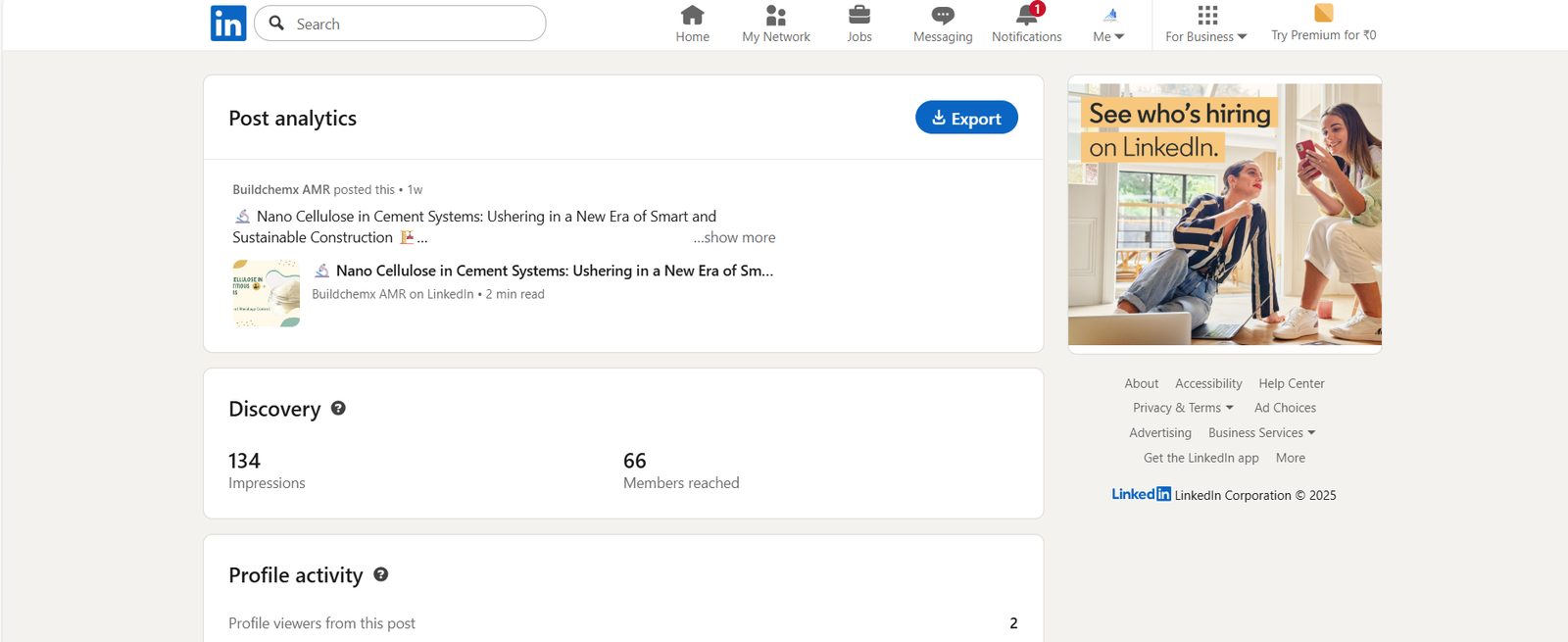

Community Engagement on LinkedIn

Professionals in the field responded favorably to my LinkedIn article regarding nanocellulose in cement.
Here is a brief overview of the analytics:

👉 View the post on LinkedIn

Disclaimer: All images used in this blog are conceptual or sourced from the web for illustrative purposes. Real-time project images are confidential or unavailable.

Last updated on August 3, 2025
